Ball Bearing Micro Planetary Gear Motor With Good Quality


  • Ball Bearing Micro Planetary Gear Motor With Good Quality
  • Ball Bearing Micro Planetary Gear Motor With Good Quality

Ball Bearing Micro Planetary Gear Motor With Good Quality

    Payment Type: T/T,Paypal,Money Gram,Western Union
    Terms of Trade: FOB,CIF
    Min. Order: 1000 Piece/Pieces
    Delivery Time: 15 Days
    Packaging: Carton With Foam
    Productivity: 5000pieces/day
    Brand: GCM
    Transportation: Ocean,Air,Express
    Place of Origin: Guangdong
    Supply Ability: 50000pieces/day
    Certificate: CE,FCC,CCC,ROSH,ISO
    Port: Shenzhen,Guangzhou,HongKong
  • Ms.  Vicky

Basic Info

Model No.: GC-32GP-395

Application: Power Tools, Car, Household Appliances, Industrial, Universal

Operating Speed: Low Speed

Excitation Mode: Shunt

Function: Control

Casing Protection: Closed Type

Number of Poles: 2

Structure and Working Principle: Brush

Type: Z2

Certification: ISO9001

Gearbox Material: Metal

Motor Shape: Round

Gearbox Shape: Round

Rotation Direction: CW/CCW

Customization: Available

Motor Model: GC-32GP-395

Gearbox Diameter: 32mm

MOTOR SIZE: φ27.7x46.5mm

Shaft Diameter: 8mm

Shaft Shape: Round

Product Description

GC-32GP-395 Ball Bearing Micro Planetary Gear Motor With Good Quality, Light weight, Ferrite magnets, Low noise, Long life, Low speed,Low current, Brushed with competitive price, with stainless steel. Permanent Magnet construction. Used in Peristaltic pump, Micro CNC equipment, ATM bank automatic system, Card conveyors, Auto shutter, Binding machine, Mimeograph, Office equipment,Household appliances, Automatic actuator.

Detailed Images

Epicyclic Gear Motor

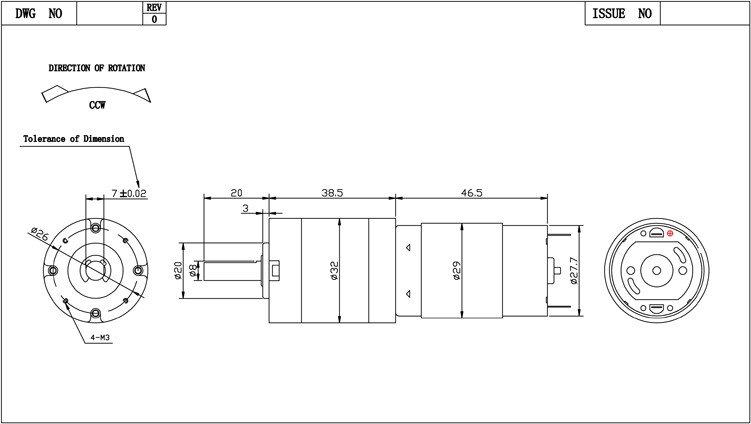

Gear Motor Dimension

Small Planetary Gear Set

Motor Technical Data
MODEL Rated Voltage No Load AT MAXIMUM EFFICIENCY At Stall
Speed Current Speed Torque Current Out-Put Torque Current
VDC r/min mA r/min g.cm A W g.cm A
GC-395SP-1260 12 8000 200 6600 110 1.3 8.3 660 6.5
GC-395SP-2450 24 8000 100 6700 110 0.6 8.3 660 3.2
Gear Motor Techinical Data Gearbox with motor: GC-32GP-395SP-1260-XXX
Reduction Ratio 3.7 19 51 100 139 189 264 369 515 721
Gearbox Length(mm) 25.5 33.5 41.5 41.5 41.5 49.5 49.5 49.5 49.5 49.5
No-load Speed(rpm) 2100 410 150 78 55 41 30 21 15 10.5
Rated Speed(rpm) 1800 360 135 69 50 37 26 18.6 13.8 10
Rated Torque(kg.cm) 0.3 1.4 3.3 6.5 9 11 15 20 20 20
Max. Momentary Tolerance Torque(kg.cm) 0.6 2.8 6 12 18 22 30 40 40 40
Gearbox with motor Gearbox with motor: GC-32GP-395SP-2450-XXX
Reduction Ratio 3.7 19 51 100 139 189 264 369 515 721
Gearbox Length(mm) 25.5 33.5 41.5 41.5 41.5 49.5 49.5 49.5 49.5 49.5
No-load Speed(rpm) 2100 410 150 78 55 41 30 21 15 10.5
Rated Speed(rpm) 1800 360 135 69 50 37 26 18.6 13.8 10
Rated Torque(kg.cm) 0.3 1.4 3.3 6.5 9 11 15 20 20 20
Max. Momentary Tolerance Torque(kg.cm) 0.6 2.8 6 12 18 22 30 40 40 40


Company Information


spur gear motor

Shenzhen Gold Crown Micromotor Co., Ltd.stablished in 2008, is a manufacturer of micro DC motor with research, development, production and sale. The factory area of 3500 square meters, 15 technicians, 100 sets advanced automatic produce and test devices, automatic computer control the whole system from motor winding, welding to parts assembly, also able to test the parts of performance, life, no-load, on-load, temperature, salt fog and motor accessories conformance.

The main products includes micro DC motor, micro BLDC motor, worm gear DC motor, planetary gear reducer DC motor, micro high-voltage DC motor etc, which covers all stages of the voltage( from micro 1.5VDC to 36 VDC, and high voltage 110V, 220V, 230V). In addition, we could be customized according to clients' requirements.
Start business with Gold Crown now, you will find a reliable and trustworthy partner in China.

Production Line

spur gear motor

Production & Testing Equipment

Dc Gear Motor

Packing & Shipping

DC Gear motor

Our Service

1.All the Micro dc motor OEM Manufacturing welcome: Product ,Package.....

2. All knid of Micromotor Sample order accpet..

Motor specification(no-load speed , voltage,torque , diameter,noise, life,testing) and shaft length can be tailor-made according to customer`s requirements.
3. With professional motor engineer team, resolve any problem in 2 hours.

4.After sending, we will track the products for you every days, until you get the products. When you got the
goods, test them, and give me a feedback. If you have any questions about the problem, contact with us, we will offer the solve way for you.

FAQ

Q1: Can you make motors customized?

A:Yes, we can do all kinds of micro dc motor and welcome.

Q2: What's the deliverly time of sample and the cargo?
A:For regular specification, it needs about 3-5 working days for samples, and 15-20 working days for the cargo; For customized specification, it needs about 7-10 working days for samples, 25-30 working days for the cargo.

Q3: What is the payment terms?
A:T/T, Western Union, L/C, etc, easy for your business.

Q4:What information you need provide if you want we recommend motors for you?

A: You need provide the basic specification of the motor, like: Dimesnion, Application, Voltage, Speed and Torque. If you have samples or drawings, it's better you can send it to us.
Q5. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery
Q6: How do you make our business long-term and good relationship?
A: 1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
