Drainage Board for Roofing Garden Drainage
|Terms of Trade:||FOB|
|Min. Order:||6000 Square Meter|
|Delivery Time:||6 Days|
|Packaging:||woven bag or as customer's|
|Productivity:||5tons per day|
|Place of Origin:||Shandong|
|Supply Ability:||1800tons per year|
Model No.: SDTH-003

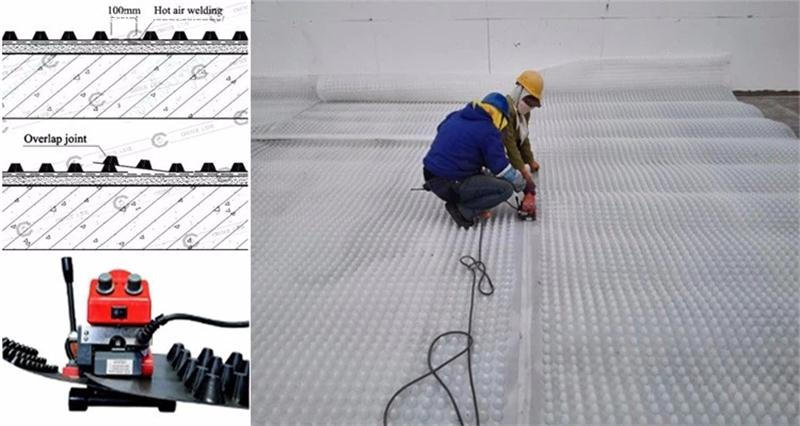

There are two series of drainage board/ dimple membrane: roller material & sheet material. The roller material includes three types: thermal melting, lapping & self-adhered. The molding process adopts special technology to press the plastic sheet material with the closed convex columnar shell to form concave-convex film. The shell is continuous and has three-dimensional space and certain supporting height. At edge processing, thermal sticking butyl rubber is added to the edge. Covered with geotextile at the top of the shell, it can be used for water seepage, drainage and storage. It is also known as: self-adhesive PE drainage board, drainage plate, drainage protective board, water treatment board, plastic concave-convex drainage board, plastic inter-layer board.
Composite Plastic Drainage board widly used in the basement,greening project,the yunnel,waste landfill.golf course,drainage and reserving water project.
Product :Composite Plastic Drain Plate
Material:HDPE heat bonded with Non woven fabric
Color:black or white
Whole thickness(single or double side):6mm----30mm
Specification of drain board:3000mmX15000mm
Tensile loading:>150kpa --- >800kpa
A good drainage system plays an important role in the construction period of the civil works and the normal use and life of the structures. The drainage board and the porous water pipe form an effective drainage system, and the cylindrical multi-drain drainage board and the geotextile also form a drainage system, thereby forming a system with water seepage, water storage and drainage functions.
Composite Plastic Drain Plate have a remarkable capacity of horizontal draining, featuring high compressive strengths and high porosity.
Dimple drain sheet is used in the basement,greening project,waste landfill.golf course,drainage and reserving water project
Laboratory data show that HDPE drainage plate can effectively reduce 14 db and 500HZ noise in the room, and has obvious noise reduction and sound insulation function.Drain board is used in the ground or metope, also can have very good ventilated moistureproof effect.
Drainage board can effectively protect structures and waterproofing, and resist various acid-base in soil and root thorns of plants.When backfilling the basement wall, it can protect the building and waterproof layer from damage.
The plastic drainage board is made of high-density polyethylene (HDPE) as the raw material base plate and is punched into a conical projection or a stiffening rib (or hollow cylindrical porous). The top surface of the conical platform is glued with a layer of filter geotextile to prevent the passage of dirt particles, so as to avoid the drainage channel obstructing and smoothing the drainage of the channel. The traditional drainage method uses brick and stone tiles as a filter layer, uses more pebbles or gravel as a drainage layer, and discharges water to a designated location. The use of drainage boards instead of cobblestone drainage to drain water saves time, effort and energy, saves investment, and reduces building loads.

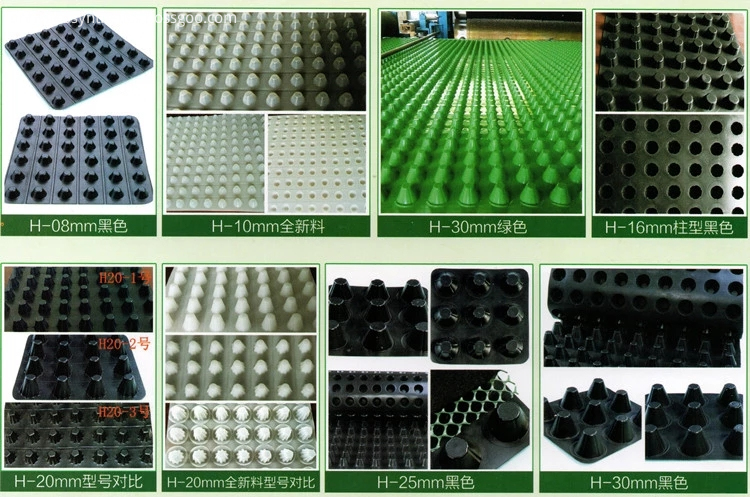

1. Material: HDPE
2. Height: 8 10 12 16 18 20 30 mm
3. Color: white, green, black, blue
4. Width: 1m or 2m or 3m
5. Length: 10-25m
6. High compressive strength
8.Tensile loading:>150kpa --- >800kpa
10. Resistance to chemicals, root penetration, microorganism
Drainage board is made of HDPE with impact resistance and pressure resistance which can resist long-term high pressure,and will not generate deformation. The long-term pressure resistance not only can resist weight of concrete bottom plate and its load, but also can bear unav oidable outside pressure and impact force during construction.
Drainage board plays an important role in good drainage system, the civil construction period and normal use of structure. Drain board and also called basement drainage is an effective drain drainage system, cylindrical long-short drainage plate and geotextiles is composed of a drainage system, thus forming a which has the function of water seepage, water storage and drainage system.
Concave convex drainage board instead of pebbles water drainage has the advantage of time saving, energy saving and saving investment, also can reduce the load of the building.

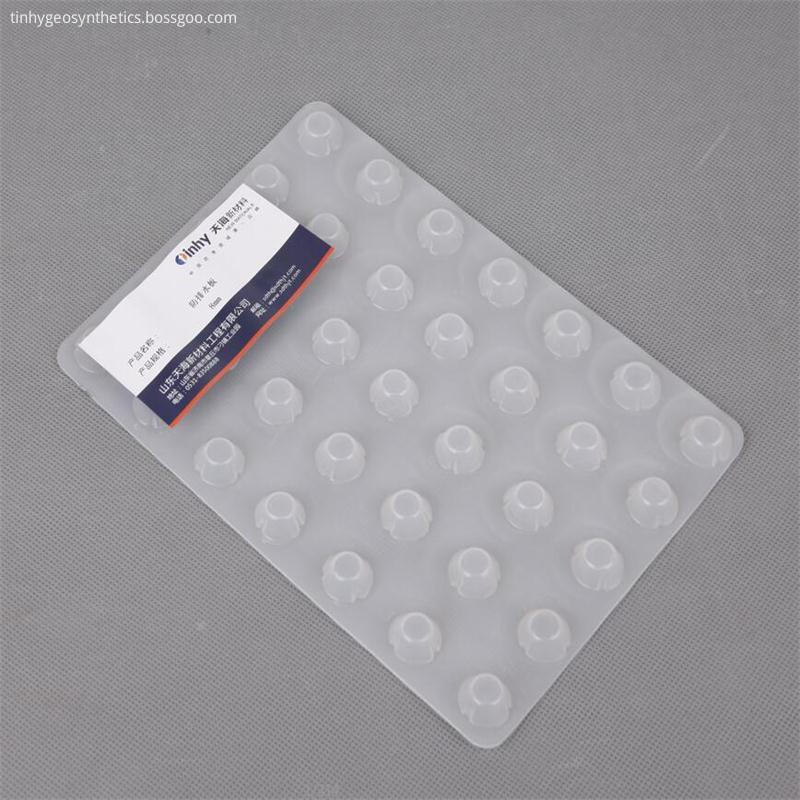

Dimple Drainage board is using blow molding method to produce high density polyethylene (HDPE) geomembrane, pressed on geomembrane pressure after the special craft the closed swelled the frustum of a cone shape, having a three-dimensional space and some support stiffness, liquid, gas can flow excreted within its plate. This dimples which in spatial structure with certain height can resist long-term high pressure without deformation.
Concave convex drainage board has a good drainage system of the civil construction period and normal use of structure in playing an important role. Drain and porous tubes an effective drain drainage system, cylindrical long-short drainage plate and geotextiles is composed of a drainage system, thus forming the function of water seepage, water storage and drainage system.
1. Convenient construction, easy maintenance and economy.
2.Strong resistance to load and durability.
3.The water can be partially stored and the remaining water can be drained quickly.
4.It provides sufficient moisture and oxygen for plant production.
5.Light weight, the roof heat insulation function strong.
Hdpe Dimple Drainage Sheet Application Range

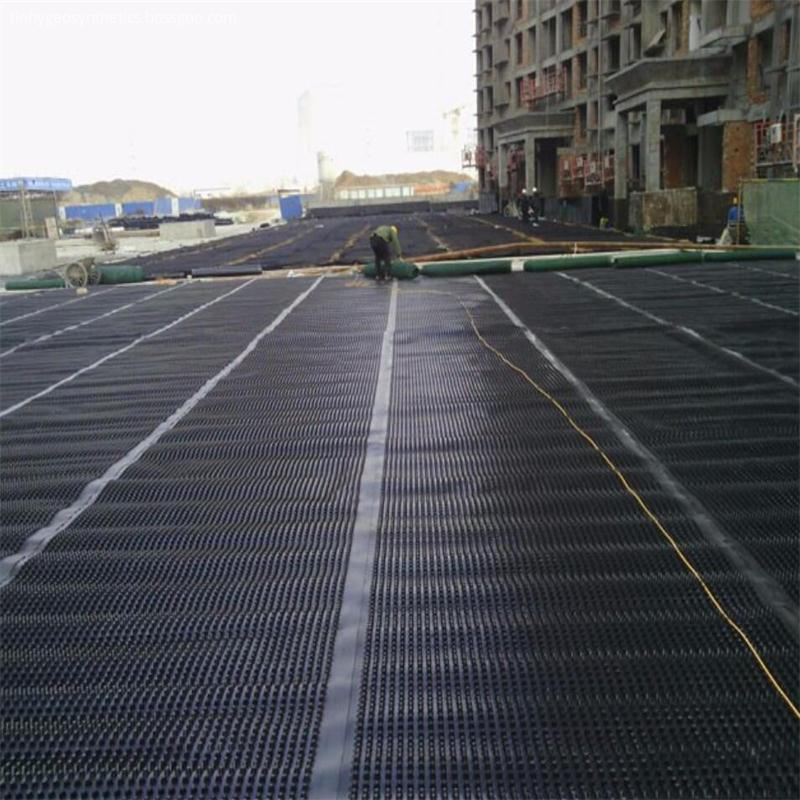

1. Greening project: the garage roof greening, roof garden, vertical greening, roof greening, football pitches, golf course, etc.
2. Municipal engineering: airport, road embankment, subway, tunnel, landfill, etc.
3. Construction: the upper or lower building foundation, inside and outside the basement wall, floor and roof, roof seepage control and heat insulation layer, etc.
4. Water conservancy project: the reservoir seepage water, reservoir, lake water seepage control, etc.
5. Traffic engineering: highway, railway basement, roadbed, dam and slope protection layer, etc.
Features and Benefits: Application: •Low-cost, high efficiency; durable.Efficiently removes only excess water . • Municipal engineering: road base, subway, tunnel, landfill. •Chemical resistance, resistance to puncture of plant roots.Promotes fast and excellent plant growth. • Landscape engineering: garage top greening, roof garden, football field, golf course, beach project. •Diverse application; simple installation and quality guaranteed. •Traffic engineering: Highway, Railway basement, Dam and Slope. •High Load Bearing 150t/m2 unconfined •Construction engineering : Upper or bottom layer of building foundation, Basement wall.
Strong structure can support heavy loads.
Features and Benefits:
•Low-cost, high efficiency; durable.Efficiently removes only excess water .
• Municipal engineering: road base, subway, tunnel, landfill.
•Chemical resistance, resistance to puncture of plant roots.Promotes fast and excellent plant growth.
• Landscape engineering: garage top greening, roof garden, football field, golf course, beach project.
•Diverse application; simple installation and quality guaranteed.
•Traffic engineering: Highway, Railway basement, Dam and Slope.
•High Load Bearing 150t/m2 unconfined
•Construction engineering : Upper or bottom layer of building foundation, Basement wall.
Over the years, the company was awarded [China Famous Brand"[Shandong Top Brand" and [Famous Brand of Shandong Province". CRCC railways product certification, CQC environmental protection certification, the European CE certification, three management systems certification and AAA credit rating certificate has been acquired.
We are willing to supply good quality products and good service to satisfy customer's need!
Whether selecting a current product from our catalog or seeking engineering assistance for your application, you can talk to our customer service center about your sourcing requirements.
Shandong Tianhai New Materials Engineering Co., Ltd
Shandong Tianhai New Materials Engineering CO., LTD was established in 2002, specializes in the production, R&D, application and construction of new engineering materials.
The company covers an area of more than 70,000 square meters with 110 million registered capitals, more than 325 staff, 21 various advanced production lines, who is the member unit of China Geosynthetics Engineering Association, China National Building Waterproof Association, China Plastics Processing Industry Association and Shandong Building Materials Industry Association.
The company has products of three categories, twelve series, hundred types, such as geosynthetic materials, matrixMD waterproof and drainage system, high polymer waterproofing materials and so on. The products are widely used in five fields: eco-environmental protection, irrigated agriculture, traffic engineering, municipal gardens, building waterproof.
Over the years, the company was awarded [China Famous Brand"[Shandong Top Brand" and [Famous Brand of Shandong Province". CRCC railways product certification, CQC environmental protection certification, the European CE certification, three management systems certification and AAA credit rating certificate has been acquired. The company also has the self-support rights to import and export.
The branch of Tinhy has obtained the construction qualification of special professional seepage-proofing qualification and safety production license. There is a more than one hundred persons team of engineering construction, management and operation including project manager, national certified architect and professional welding technician. Various construction of environmental seepage-proofing could be contracted. The company has more than thousand of major seepage-proofing project and earn a good reputation as the leading brand in anti-seepage field in China.
- Company Name: Shandong Tianhai New Materials Engineering Co., Ltd
- Representative: Xiao Hua Chun
- Product/Service: HDPE Geomembrane , HDPE Drainage Sheet , Nonwoven Geotextile , Composite Geomembrane , Geosynthetic Clay Liner , Waterproof Roll Material
- Capital (Million US $): 110,000,000RMB
- Year Established: 2002
- Total Annual Sales Volume (Million US $): US$1 Million - US$2.5 Million
- Export Percentage: 1% - 10%
- Total Annual Purchase Volume (Million US $): Below US$1 Million
- No. of Production Lines: Above21
- No. of R&D Staff: 5 -10 People
- No. of QC Staff: 5 -10 People
- OEM Services Provided: yes
- Factory Size (Sq.meters): 50,000-100,000 square meters
- Factory Location: Diaozhen Chemical Industrial Park of Zhangqiu, Jinan City, Shandong Province, China.
- Contact Person: Mr. Grace Wei
- Tel: 86-0531-67895178
