Thrust Needle Roller Bearing Axial Bearing Axk1024
Basic Info
Model No.: AXK1024
Product Description
Model NO.: AXK1024 Rows Number: Single Style: Without Outer Ring, With Outer Ring, Without Inner Ring, With Inner Ring Type: Closed Lubrication: Oil or Grease Rolling Body: Roller bearings Spherical: Non-Aligning Bearings Trademark: HECTO or OEM or neutral marking or no marking Origin: China Cage: With Cage Load Direction: Thrust Bearing Material: Bearing Steel Needle Super Finishing: Yes Precision: P0 P5 P6 The Number of Rows: Single Separated: Unseparated Specification: 10*24*2mm HS Code: 84824000
Why Choose HECTO?
1. More than 20 years of manufacturing and exporting experiences
2. an ISO/TS16949 company
3. 100% inspecting of products
4. More competitive prices with better quality
5. More than 99% of delivery in time
6. Rapid response of your emails and questions
7. Products can be traced back
Thrust Needle roller bearings(Metric and Inch)
Contact us if you need more details on Needle Bearing. We are ready to answer your questions on packaging, logistics, certification or any other aspects about Needle and Cage Assemblies、Drawn Cup Needle Bearing. If these products fail to match your need, please contact us and we would like to provide relevant information.
Basic Features of Thrust Needle Roller Bearing | |
Types | AXK... series NTA... series |
Material | Bearing Steel(GCr15, 100Cr6) SPCC St14 Nylon |
Dimension | Metric and Inch |
Dimension Range | 3mm~200mm(bore diameter) |
MOQ | 1 |
Delivery Time | 15-45 days |
Sea Ports | Shanghai Ningbo Qingdao |
Why Choose HECTO?
1. More than 20 years of manufacturing and exporting experiences
2. an ISO/TS16949 company
3. 100% inspecting of products
4. More competitive prices with better quality
5. More than 99% of delivery in time
6. Rapid response of your emails and questions
7. Products can be traced back
Thrust Needle roller bearings(Metric and Inch)

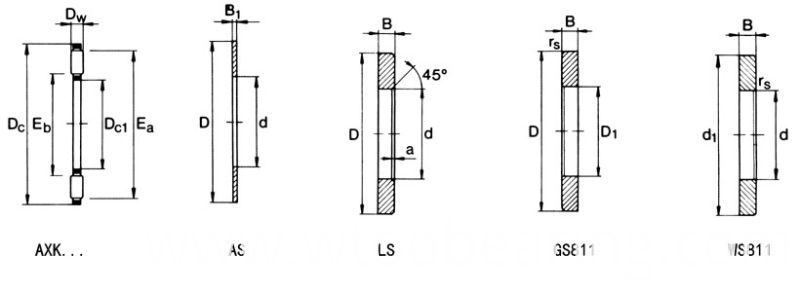

Bearing No. | Boundary Dimensions(mm) | Basic Load Ratings(N) | Limiting Speed | |||
Dc1 | Dc | Dw | Ca | Coa | Oil(RPM) | |
AXK0414TN | 4 | 14 | 2 | 4450 | 8000 | 18000 |
AXK0515TN | 5 | 15 | 2 | 4750 | 9200 | 17000 |
AXK0619TN | 6 | 19 | 2 | 6800 | 15500 | 16000 |
AXK0821TN | 8 | 21 | 2 | 7800 | 19400 | 15000 |
AXK1024 | 10 | 24 | 2 | 9200 | 25500 | 14000 |
AXK1226 | 12 | 26 | 2 | 9900 | 29000 | 13000 |
AXK1528 | 15 | 28 | 2 | 11300 | 36000 | 11000 |
AXK1730 | 17 | 30 | 2 | 11900 | 39500 | 10000 |
AXK2035 | 20 | 35 | 2 | 13100 | 46500 | 8500 |
AXK2542 | 25 | 42 | 2 | 14700 | 58000 | 7000 |
AXK3047 | 30 | 47 | 2 | 16300 | 70000 | 6000 |
AXK3552 | 35 | 52 | 2 | 17800 | 81000 | 5500 |
AXK4060 | 40 | 60 | 3 | 28000 | 114000 | 4700 |
AXK4565 | 45 | 65 | 3 | 30000 | 128000 | 4300 |
AXK5070 | 50 | 70 | 3 | 32000 | 143000 | 3900 |
AXK5578 | 55 | 78 | 3 | 38000 | 186000 | 3500 |
AXK6085 | 60 | 85 | 3 | 44500 | 234000 | 3200 |
AXK6590 | 65 | 90 | 3 | 46500 | 255000 | 3000 |
AXK7095 | 70 | 95 | 4 | 54000 | 255000 | 2900 |
AXK75100 | 75 | 100 | 4 | 55000 | 265000 | 2700 |
AXK80105 | 80 | 105 | 4 | 56000 | 280000 | 2600 |
AXK85110 | 85 | 110 | 4 | 58000 | 290000 | 2400 |
AXK90120 | 90 | 120 | 4 | 73000 | 405000 | 2300 |
AXK100135 | 100 | 135 | 4 | 91000 | 560000 | 2000 |
AXK110145 | 110 | 145 | 4 | 97000 | 620000 | 1900 |
AXK120155 | 120 | 155 | 4 | 102000 | 680000 | 1700 |
AXK130170 | 130 | 170 | 5 | 133000 | 840000 | 1600 |
AXK140180 | 140 | 180 | 5 | 138000 | 900000 | 1500 |
AXK150190 | 150 | 190 | 5 | 143000 | 960000 | 1400 |
AXK160200 | 160 | 200 | 5 | 148000 | 1020000 | 1300 |
NTA411 | 6.35 | 17.45 | 1.984 | 4100 | 9100 | 28000 |
NTA512 | 7.93 | 19.05 | 1.984 | 4600 | 11100 | 25000 |
NTA613 | 9.52 | 20.63 | 1.984 | 4800 | 12100 | 23000 |
NTA815 | 12.7 | 23.8 | 1.984 | 5700 | 16200 | 19000 |
NTA916 | 14.27 | 25.4 | 1.984 | 6200 | 18200 | 18000 |
NTA1018 | 15.88 | 28.58 | 1.984 | 7000 | 22500 | 16000 |
NTA1220 | 19.05 | 31.75 | 1.984 | 7800 | 27000 | 14000 |
NTA1423 | 22.23 | 36.51 | 1.984 | 10400 | 40900 | 12000 |
NTA1625 | 25.4 | 39.68 | 1.984 | 10700 | 43900 | 11000 |
NTA1828 | 28.58 | 44.45 | 1.984 | 13500 | 60900 | 9800 |
NTA2031 | 31.75 | 49.21 | 1.984 | 16400 | 80900 | 8800 |
NTA2233 | 34.92 | 52.38 | 1.984 | 17400 | 89400 | 8200 |
NTA2435 | 38.1 | 55.56 | 1.984 | 18900 | 102300 | 7700 |
NTA2840 | 44.45 | 63.5 | 1.984 | 20600 | 119600 | 6900 |
NTA3244 | 50.8 | 69.85 | 1.984 | 19500 | 115200 | 6200 |
NTA3446 | 53.98 | 73.02 | 1.984 | 19900 | 119600 | 5900 |
NTA3648 | 57.15 | 76.2 | 1.984 | 20200 | 123600 | 5700 |
NTA3650 | 57.15 | 79.38 | 3.175 | 32900 | 168100 | 5300 |
NTA4052 | 63.5 | 82.55 | 1.984 | 20700 | 132100 | 5200 |
NTA4458 | 69.85 | 92.08 | 3.175 | 41700 | 242400 | 4600 |
NTA4860 | 76.2 | 95.25 | 1.984 | 21900 | 149400 | 4500 |
NTA5266 | 82.55 | 104.78 | 3.175 | 44900 | 279700 | 4000 |
NTA6074 | 95.25 | 117.48 | 3.175 | 48900 | 326400 | 3500 |
NTA6681 | 104.78 | 128.58 | 3.175 | 55600 | 395400 | 3200 |
