Thrust Needle Roller Bearing Axial Bearing Axk3552

    Payment Type: L/C, T/T, D/P
    Min. Order: 1
    Productivity: 10 Million/Year
    Place of Origin:  China
    Supply Ability: 10 Million/Year
  • Mr. Catherine Zhou

Product Description

Cage: With Cage Load Direction: Thrust Bearing Material: Bearing Steel Needle Super Finishing: Yes Precision: P0 P5 P6 The Number of Rows: Single Separated: Unseparated Specification: 35*52*2mm HS Code: 84824000 Rows Number: Single Style: Without Outer Ring, With Outer Ring, Without Inner Ring, With Inner Ring Type: Closed Lubrication: Oil or Grease Rolling Body: Roller Bearings Spherical: Non-Aligning Bearings Trademark: HECTO or OEM or neutral marking or no marking Origin: China
Basic Features of Thrust Needle Roller Bearing
Types AXK... series
NTA... series
Material Bearing Steel(GCr15, 100Cr6)
SPCC St14
Nylon
Dimension Metric and Inch
Dimension Range 3mm~200mm(bore diameter)
MOQ 1
Delivery Time 15-45 days
Sea Ports Shanghai Ningbo Qingdao


Why Choose HECTO?
1. More than 20 years of manufacturing and exporting experiences
2. an ISO/TS16949 company
3. 100% inspecting of products
4. More competitive prices with better quality
5. More than 99% of delivery in time
6. Rapid response of your emails and questions
7. Products can be traced back
Thrust Needle Roller Bearing Axial Bearing Axk3552
Thrust Needle Roller Bearing Axial Bearing Axk3552
Thrust Needle Roller Bearing Axial Bearing Axk3552

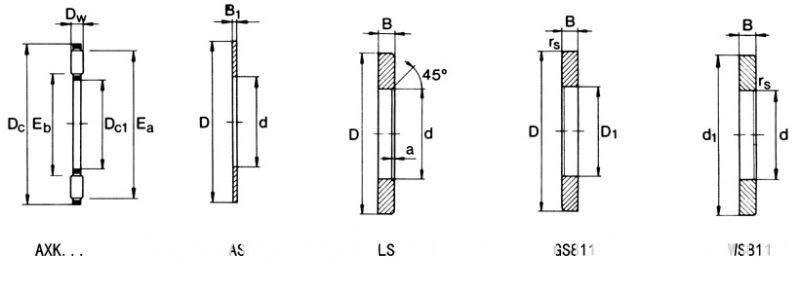

Thrust Needle Roller Bearings(Metric and Inch)
Bearing No.  Boundary Dimensions(mm) Basic Load Ratings(N) Limiting Speed
Dc1 Dc Dw Ca Coa Oil(RPM)
AXK0414TN 4 14 2 4450 8000 18000
AXK0515TN 5 15 2 4750 9200 17000
AXK0619TN 6 19 2 6800 15500 16000
AXK0821TN 8 21 2 7800 19400 15000
AXK1024 10 24 2 9200 25500 14000
AXK1226 12 26 2 9900 29000 13000
AXK1528 15 28 2 11300 36000 11000
AXK1730 17 30 2 11900 39500 10000
AXK2035 20 35 2 13100 46500 8500
AXK2542 25 42 2 14700 58000 7000
AXK3047 30 47 2 16300 70000 6000
AXK3552 35 52 2 17800 81000 5500
AXK4060 40 60 3 28000 114000 4700
AXK4565 45 65 3 30000 128000 4300
AXK5070 50 70 3 32000 143000 3900
AXK5578 55 78 3 38000 186000 3500
AXK6085 60 85 3 44500 234000 3200
AXK6590 65 90 3 46500 255000 3000
AXK7095 70 95 4 54000 255000 2900
AXK75100 75 100 4 55000 265000 2700
AXK80105 80 105 4 56000 280000 2600
AXK85110 85 110 4 58000 290000 2400
AXK90120 90 120 4 73000 405000 2300
AXK100135 100 135 4 91000 560000 2000
AXK110145 110 145 4 97000 620000 1900
AXK120155 120 155 4 102000 680000 1700
AXK130170 130 170 5 133000 840000 1600
AXK140180 140 180 5 138000 900000 1500
AXK150190 150 190 5 143000 960000 1400
AXK160200 160 200 5 148000 1020000 1300

NTA411 6.35 17.45 1.984 4100 9100 28000
NTA512 7.93 19.05 1.984 4600 11100 25000
NTA613 9.52 20.63 1.984 4800 12100 23000
NTA815 12.7 23.8 1.984 5700 16200 19000
NTA916 14.27 25.4 1.984 6200 18200 18000
NTA1018 15.88 28.58 1.984 7000 22500 16000
NTA1220 19.05 31.75 1.984 7800 27000 14000
NTA1423 22.23 36.51 1.984 10400 40900 12000
NTA1625 25.4 39.68 1.984 10700 43900 11000
NTA1828 28.58 44.45 1.984 13500 60900 9800
NTA2031 31.75 49.21 1.984 16400 80900 8800
NTA2233 34.92 52.38 1.984 17400 89400 8200
NTA2435 38.1 55.56 1.984 18900 102300 7700
NTA2840 44.45 63.5 1.984 20600 119600 6900
NTA3244 50.8 69.85 1.984 19500 115200 6200
NTA3446 53.98 73.02 1.984 19900 119600 5900
NTA3648 57.15 76.2 1.984 20200 123600 5700
NTA3650 57.15 79.38 3.175 32900 168100 5300
NTA4052 63.5 82.55 1.984 20700 132100 5200
NTA4458 69.85 92.08 3.175 41700 242400 4600
NTA4860 76.2 95.25 1.984 21900 149400 4500
NTA5266 82.55 104.78 3.175 44900 279700 4000
NTA6074 95.25 117.48 3.175 48900 326400 3500
NTA6681 104.78 128.58 3.175 55600 395400 3200

Contact us if you need more details on Needle Bearing. We are ready to answer your questions on packaging, logistics, certification or any other aspects about Needle and Cage Assemblies、Drawn Cup Needle Bearing. If these products fail to match your need, please contact us and we would like to provide relevant information.
