Entity Bushed Needle Roller Bearing with (without) Inner Ring Nk42/30

Basic Info

Model No.:  NK42/30

Product Description

Model NO.: NK42/30 Rows Number: Single Style: Without Outer Ring, With Outer Ring, Without Inner Ring, With Inner Ring Type: Closed Lubrication: Oil or Grease Precision: P0 P5 P6 The Number of Rows: Single Separated: Separated Specification: NK42/30 HS Code: 84824000 Cage: With Cage Load Direction: Radial Bearing Material: Bearing Steel Needle Super Finishing: Yes Application: Vehicles Rolling Body: Roller bearings Spherical: Non-Aligning Bearings Trademark: HECTO or OEM or neutral marking or no marking Origin: China
Basic Features of Entity Bushed Needle Roller Bearing

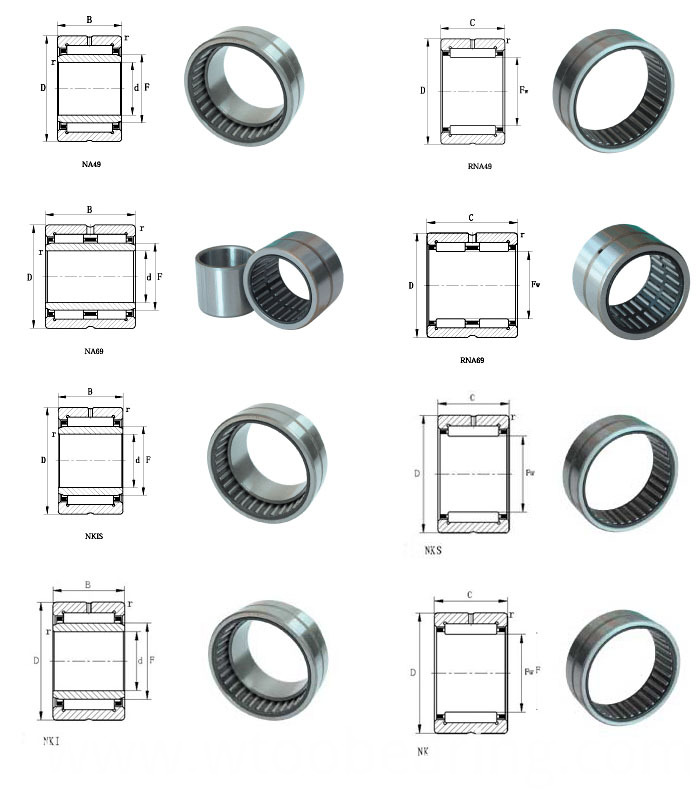

Types NA49... series (with Inner Ring)
RNA49... series (without Inner Ring)
NA69... series (with Inner Ring)
RNA69... series (without Inner Ring)
NKIS... series (with Inner Ring)
NKS... series (without Inner Ring)
NKI... series (with Inner Ring)
NK... series (without Inner Ring)

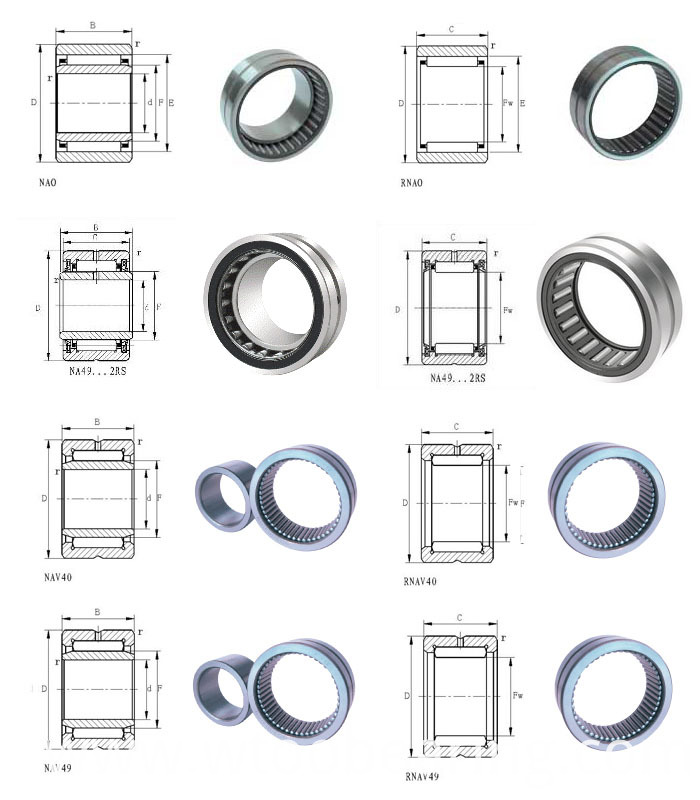

NAO... series (without Ribs)
RNAO... series (without Ribs)
NA49...2RS series (with Seals)
RNA49...2RS series (with Seals)
NAV40... series (without Cage)
RNAV40... series (without Cage)
NAV49... series (without Cage)
RNAV49... series (without Cage)
Material Bearing Steel(GCr15, 100Cr6)
SPCC St14
Nylon
Dimension Metric and Inch
Dimension Range 5mm~200mm(bore diameter)
MOQ 1
Delivery Time 15-45 days
Sea Ports Shanghai Ningbo Qingdao


Why Choose HECTO?
1. More than 20 years of manufacturing and exporting experiences
2. an ISO/TS16949 company
3. 100% inspecting of products
4. More competitive prices with better quality
5. More than 99% of delivery in time
6. Rapid response of your emails and questions
7. Products can be traced back
Entity Bushed Needle Roller Bearing with (without) Inner Ring Nk42/30
Entity Bushed Needle Roller Bearing with (without) Inner Ring Nk42/30
Entity Bushed Needle Roller Bearing with (without) Inner Ring Nk42/30
Entity Bushed Needle Roller Bearing with (without) Inner Ring Nk42/30
Entity Bushed Needle Roller Bearing
Shaft Bearing No. Weight  Dimensions Basic Load Rating(KN) Limiting Speed
(mm) (g) d F D B r(min.) Cr Cor RPM
10 NKI 10/16 29 10 14 22 16 0.3 11 12.5 19000
  NKI 10/20 37 10 14 22 20 0.3 12.8 15.6 19000
12 NKI 12/16 33 12 16 24 16 0.3 11.5 13.8 17000
  NKI 12/20 41 12 16 24 20 0.3 14.6 18.8 17000
15 NKI 15/16 39 15 19 27 16 0.3 13.8 18.5 14000
  NKI 15/20 49 15 19 27 20 0.3 17.6 25.1 14000
17 NKI 17/16 42 17 21 29 16 0.3 14.3 19.8 13000
  NKI 17/20 53 17 21 29 20 0.3 18.1 26.9 13000
20 NKI 20/16 49 20 24 32 16 0.3 15.1 22.3 12000
  NKI 20/20 61 20 24 32 20 0.3 19.3 30.3 12000
22 NKI 22/16 52 22 26 34 16 0.3 16.1 24.7 11000
  NKI 22/20 65 22 26 34 20 0.3 20.4 33.5 11000
25 NKI 25/20 79 25 29 38 20 0.3 22.1 33.9 10000
  NKI 25/30 124 25 29 38 30 0.3 33.5 57.9 9500
28 NKI 28/20 96 28 32 42 20 0.3 23.5 37.7 9000
  NKI 28/30 146 28 32 42 30 0.3 35.6 64.3 9000
30 NKI 30/20 112 30 35 45 20 0.3 24.8 41.4 8500
  NKI 30/30 170 30 35 45 30 0.3 37.5 70.6 8000
32 NKI 32/20 118 32 37 47 20 0.3 25.3 43.3 8000
  NKI 32/30 180 32 37 47 30 0.3 38.3 73.9 8000
35 NKI 35/20 127 35 40 50 20 0.3 26.4 47.1 7500
  NKI 35/30 193 35 40 50 30 0.3 43.8 80.2 7500
38 NKI 38/20 136 38 43 53 20 0.3 27.5 50.8 7000
  NKI 38/30 207 38 43 53 30 0.3 41.6 86.6 7000
40 NKI 40/20 142 40 45 55 20 0.3 28 52.7 7000
  NKI 40/30 216 40 45 55 30 0.3 42.4 89.8 6500
42 NKI 42/20 148 42 47 57 20 0.3 29.2 56.4 6500
  NKI 42/30 222 42 47 57 30 0.3 44.2 96.1 6500
45 NKI 45/25 229 45 50 62 25 0.3 40.5 79.4 6500
  NKI 45/35 322 45 50 62 35 0.6 55.9 119.5 6500
50 NKI 50/25 270 50 55 68 25 0.6 43.7 81.7 6000
  NKI 50/35 379 50 55 68 35 0.6 61.8 127.7 6000
55 NKI 55/25 272 55 60 72 25 0.6 43.1 90.7 5500
  NKI 55/35 379 55 60 72 35 0.6 60.9 141.6 5500
60 NKI 60/25 394 60 68 82 25 0.6 48.6 100.6 4900
  NKI 60/35 553 60 68 82 35 0.6 68.8 157.1 4800
65 NKI 65/25 467 65 73 90 25 1 54.2 100.8 4600
  NKI 65/35 659 65 73 90 35 1 79.4 164.7 4400
70 NKI 70/25 521 70 80 95 25 1 54.7 113.4 4100
  NKI 70/35 737 70 80 95 35 1 78.6 181 4000
75 NKI 75/25 641 75 85 105 25 1 71.7 126.5 3900
  NKI 75/35 908 75 85 105 35 1 102.8 200.8 3800
80 NKI 80/25 677 80 90 110 25 1 74.9 136 3700
  NKI 80/35 959 80 90 110 35 1 107.3 216 3600
85 NKI 85/26 743 85 95 115 26 1 79.5 149.4 3600
  NKI 85/36 1040 85 95 115 36 1 112 232.4 3400
90 NKI 90/26 778 90 100 120 26 1 82.3 159.5 3500
  NKI 90/36 1090 90 100 120 36 1 116 248 3300
95 NKI 95/26 816 95 105 125 26 1 83.6 164.8 3300
  NKI 95/36 1145 95 105 125 36 1 117.9 256.4 3200
100 NKI 100/30 990 100 110 130 30 1.1 100.9 213.9 3100
  NKI 100/40 1330 100 110 130 40 1.1 128.4 311 3000

Shaft Bearing No. Weight  Dimensions Basic Load Rating(KN) Limiting Speed
(mm) (g) Fw D C r(min.)  Cr Cor RPM
5 NK 5/10TN 3.1 5 10 10 0.15 2.5 2 37000
  NK 5/12TN 3.7 5 10 12 0.15 3.05 2.99 37000
6 NK 6/10TN 4.7 6 12 10 0.15 2.33 2.2 33000
  NK 6/12TN 5.7 6 12 12 0.15 3.3 3.45 33000
7 NK 7/10TN 6.9 7 14 10 0.3 3.33 3.15 31000
  NK 7/12TN 8.2 7 14 12 0.3 4.19 4.24 31000
8 NK 8/12TN 8.7 8 15 12 0.3 4.1 4.3 29000
  NK 8/16TN 12 8 15 16 0.3 4.9 5.4 29000
9 NK 9/12TN 10.3 9 16 12 0.3 4.75 5.3 28000
10 NK 10/12 10 10 17 12 0.3 5.01 5.82 27000
  NK 10/16 13 10 17 16 0.3 6.51 8.12 27000
12 NK 12/12 12 12 19 12 0.3 6.4 7.1 25000
  NK 12/16 16 12 19 16 0.3 9.1 11 25000
14 NK 14/16 14 14 22 16 0.3 11 12.5 23000
  NK 14/20 18 14 22 20 0.3 13.9 17 23000
15 NK 15/16 22 15 23 16 0.3 10.9 12.7 20000
  NK 15/20 27 15 23 20 0.3 13.8 17.2 20000
16 NK 16/16 22 16 24 16 0.3 11.3 13.8 19000
  NK 16/20 28 16 24 20 0.3 14.6 18.8 19000
17 NK 17/16 24 17 25 16 0.3 12.1 15 18000
  NK 17/20 30 17 25 20 0.3 14.4 20.4 17000
18 NK 18/16 25 18 26 16 0.3 12.7 16.2 17000
  NK 18/20 31 18 26 20 0.3 16.1 22 17000
19 NK 19/16 26 19 27 16 0.3 13.8 18.5 16000
  NK 19/20 32 19 27 20 0.3 17.6 25.1 16000
20 NK 20/16 27 20 28 16 0.3 13.8 18.6 15000
  NK 20/20 34 20 28 20 0.3 17.4 25.2 15000
21 NK 21/16 29 21 29 16 0.3 14.3 19.8 14000
  NK 21/20 36 21 29 20 0.3 18.1 26.9 14000
22 NK 22/16 30 22 30 16 0.3 14.7 21 14000
  NK 22/20 37 22 30 20 0.3 18.7 28.5 14000
24 NK 24/16 32 24 32 16 0.3 15.1 22.3 13000
  NK 24/20 40 24 32 20 0.3 19.3 30.3 13000
25 NK 25/16 32 25 33 16 0.3 15.6 23.5 12000
  NK 25/20 42 25 33 20 0.3 19.8 31.9 12000
26 NK 26/16 34 26 34 16 0.3 16.1 24.7 12000
  NK 26/20 42 26 34 20 0.3 20.4 33.5 12000
28 NK 28/20 52 28 37 20 0.3 22.3 33.8 11000
  NK 28/30 82 28 37 30 0.3 33.7 57.7 11000
29 NK 29/20 54 29 38 20 0.3 22.1 33.9 10000
  NK 29/30 84 29 38 30 0.3 33.5 57.9 10000
30 NK 30/20 65 30 40 20 0.3 33.5 57.9 10000
  NK 30/30 98 30 40 30 0.3 34.7 61 10000
32 NK 32/20 68 32 42 20 0.3 23.5 37.7 10000
  NK 32/30 102 32 42 30 0.3 35.6 64.3 9500
35 NK 35/20 74 35 45 20 0.3 24.8 41.4 9000
  NK 35/30 112 35 45 30 0.3 37.5 70.6 9000
37 NK 37/20 77 37 47 20 0.3 25.3 43.3 8500
  NK 37/30 113 37 47 30 0.3 38.3 73.9 8500
38 NK 38/20 79 38 48 20 0.3 25.9 45.1 8500
  NK 38/30 116 38 48 30 0.3 39.2 77 8000
40 NK 40/20 83 40 50 20 0.3 26.4 47.1 8000
  NK 40/30 125 40 50 30 0.3 43.8 80.2 8000
42 NK 42/20 85 42 52 20 0.3 26.8 49 8000
  NK 42/30 127 42 52 30 0.3 40.7 83.5 8000
43 NK 43/20 87 43 53 20 0.3 27.5 50.8 8000
  NK 43/30 130 43 53 30 0.3 41.6 86.6 8000
45 NK 45/20 91 45 55 20 0.3 28 52.7 7500
  NK 45/30 139 45 55 30 0.3 42.4 89.8 7000
47 NK 47/20 95 47 57 20 0.3 29.2 56.4 7500
  NK 47/30 144 47 57 30 0.3 44.2 96.1 7000
50 NK 50/25 158 50 62 25 0.6 40.6 79.4 6500
  NK 50/35 221 50 62 35 0.6 55.9 119.5 6500
55 NK 55/25 180 55 68 25 0.6 43.7 81.7 6000
  NK 55/35 250 55 68 35 0.6 61.8 127.7 6000
60 NK 60/25 185 60 72 25 0.6 43.1 90.7 5500
  NK 60/35 258 60 72 35 0.6 60.9 141.6 5500
65 NK 65/25 221 65 78 25 0.6 47 94.4 5500
  NK 65/35 310 65 78 35 0.6 66.5 147.5 5500
68 NK 68/25 227 68 82 25 0.6 48.6 100.6 5500
  NK 68/35 316 68 82 35 0.6 68.8 157.1 5500
70 NK 70/25 260 70 85 25 0.6 50.1 96.7 5000
  NK 70/35 370 70 85 35 0.6 72.1 154.5 5000
73 NK 73/25 293 73 90 25 1 54.2 100.8 4800
  NK 73/35 403 73 90 35 1 79.4 164.7 4600
75 NK 75/25 315 75 92 25 1 55.3 104.3 4800
  NK 75/35 445 75 92 35 1 80.9 170.3 4600
80 NK 80/25 301 80 95 25 1 54.7 113.4 4400
  NK 80/35 425 80 95 35 1 78.6 181 4300
85 NK 85/25 425 85 105 25 1 71.7 126.5 4200
  NK 85/35 600 85 105 35 1 102.8 200.8 4000
90 NK 90/25 450 90 110 25 1 74.9 136 4000
  NK 90/35 630 90 110 35 1 107.3 216 3800
95 NK 95/26 490 95 115 26 1 79.5 149.4 3900
  NK 95/36 680 95 115 36 1 112 232.4 3700
100 NK 100/26 515 100 120 26 1 82.3 159.5 3700
  NK 100/36 715 100 120 36 1 116 248 3500
105 NK 105/26 557 105 125 26 1 83.6 164.8 3700
  NK 105/36 769 105 125 36 1 117.9 256.4 3500
110 NK 110/30 650 110 130 30 1.1 100.9 213.9 3300
  NK 110/40 830 110 130 40 1.1 128.4 311 3100

Contact us if you need more details on Needle Bearing. We are ready to answer your questions on packaging, logistics, certification or any other aspects about Needle and Cage Assemblies、Drawn Cup Needle Bearing. If these products fail to match your need, please contact us and we would like to provide relevant information.
