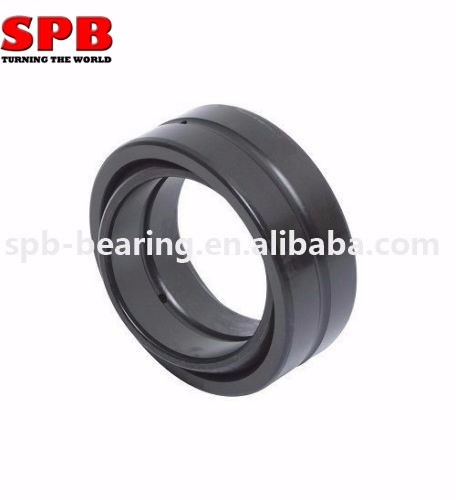

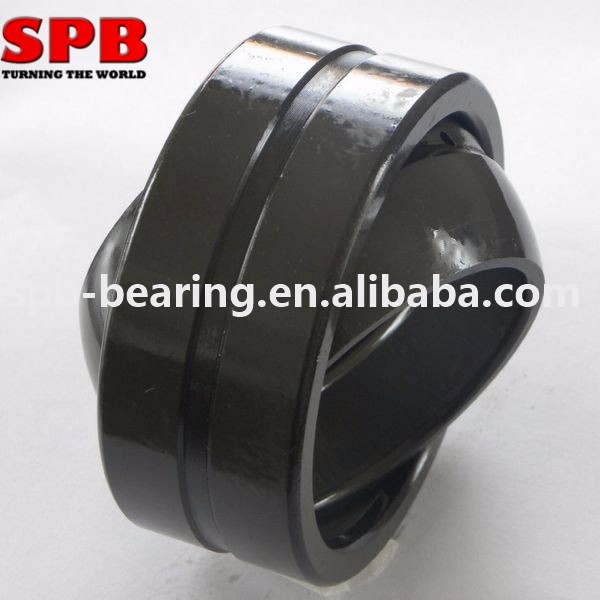

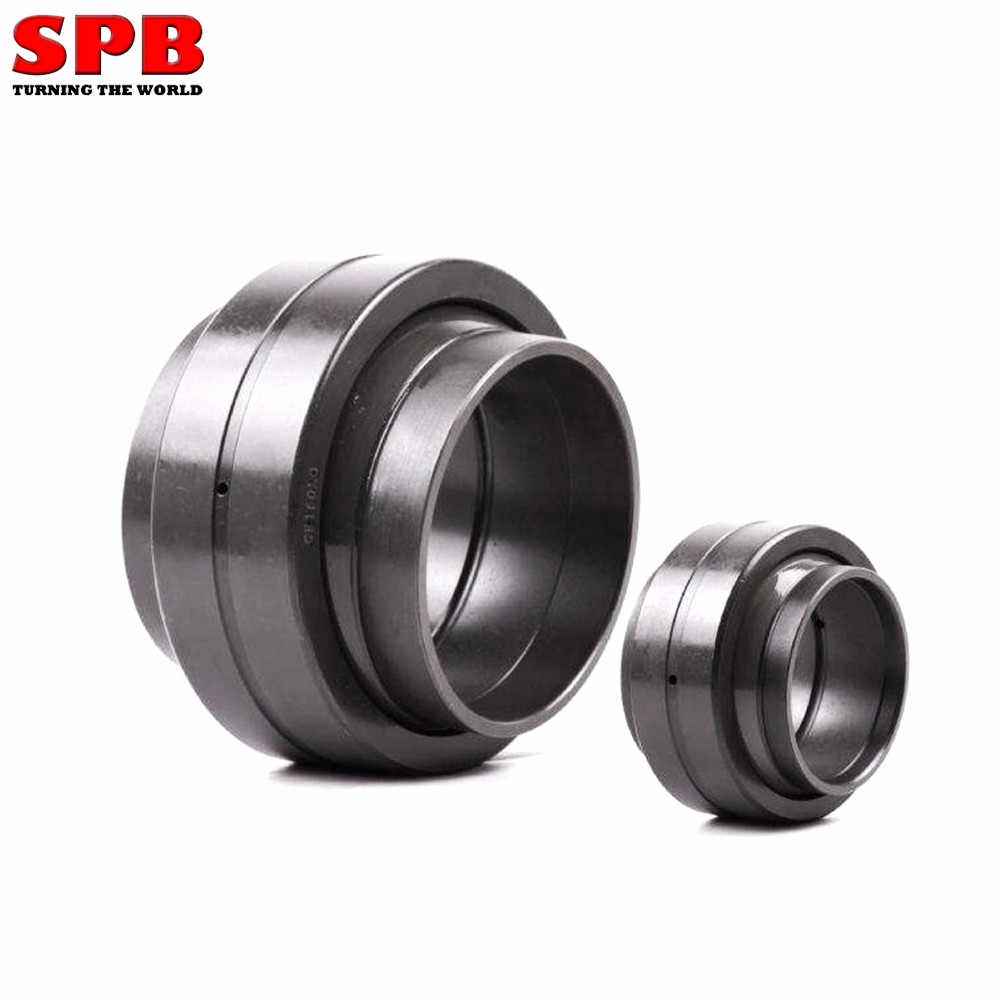

Corrosion-resistant 80*120*55mm GE80ET-2RS ball spherical plain radial joint swivel bearings
Product Description
Product Name | Rod End Cross Swivel Ball Joint Radial Spherical Plain Bearings |
Brand | various famous brands |
Series | GE, etc |
Model number | GE80-DO-2RS, GE160-DO-2RS, GE100-UK-2RS, GE200-UK-2RS etc. |
Precision | P0 P6 P5 P4 P2 |
OEM/ODM | available |
Sample | for free |
Radial spherical plain bearings have an inner ring with a sphered convex outside diameter and an outer ring with a correspondingly sphered but concave inside surface. Their design makes them particularly suitable for bearing arrangements where alignment movements between shaft and housing have to be accommodated, or where oscillating or recurrent tilting or slewing movements must be possible at relatively slow sliding speeds, often accompanied with heavy loads.

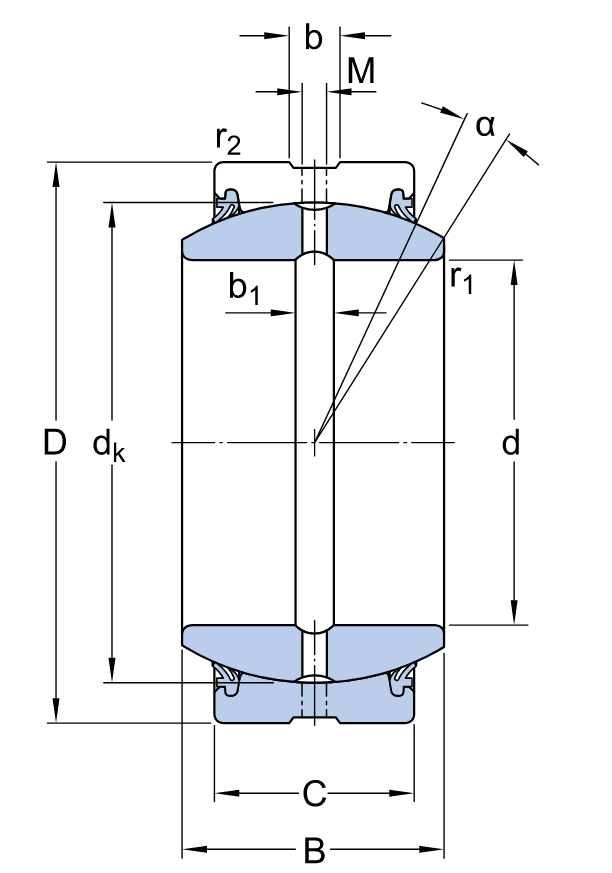

GE 80 ES-2RS Dimensions
d | 80 | mm | |
D | 120 | mm | |
B | 55 | mm | |
C | 45 | mm | |
α | 5 | ° | |
dk | 105 | mm | |
b | 7.7 | mm | |
b1 | 7.7 | mm | |
M | 4 | mm | |
r1 | min. | 1 | mm |
r2 | min. | 1 | mm |

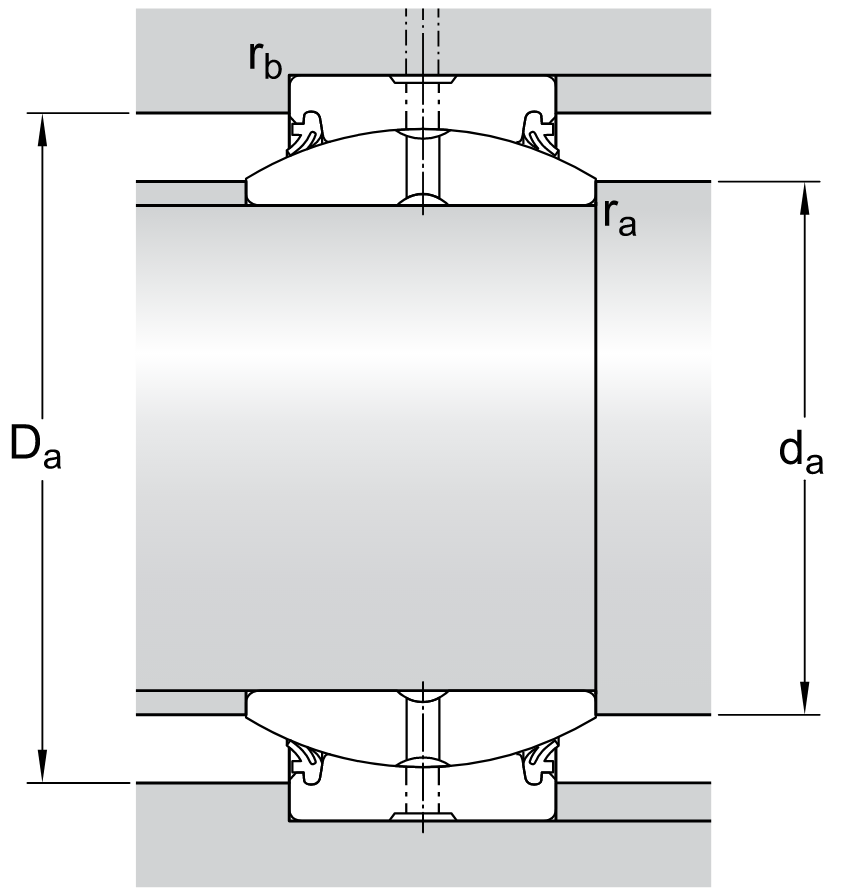

Abutment dimensions
da | min. | 87.1 | mm |
da | max. | 89.4 | mm |
Da | min. | 104.4 | mm |
Da | max. | 113.8 | mm |
ra | max. | 1 | mm |
rb | max. | 1 | mm |
Calculation data
Basic dynamic load rating | C | 400 | kN |
Basic static load rating | C0 | 2000 | kN |
Specific dynamic load factor | K | 100 | N/mm² |
Specific static load factor | K0 | 500 | N/mm² |
Material constant | KM | 330 |
Mass
Mass Plain Bearing | 2.3 | kg |
KR series
KR19-PP-A
KR35-X-PP-A
KRE series
KRE40-PP-A
KRE62-PP-A
KRV series
KRV47-PP-A
KRV52-PP-A
NUKR series
NUKR35-X-A
NUKR52-A
NUKRE series
NUKRE72-A
NUKRE90-A
PWKR series
PWKR40-2RS
PWKR62-2RS
PWKRE series
PWKRE80-2RS
PWKRE47-2RS
LR series
LFR series
LFR5201-10-2Z
LFR5308-50-2Z
NATR series
NATR35-X-PP-A
NATR50-PP-A
NATV series
NATV25-X-PP-A
NATV35-PP-A
NUTR series
NUTR2562-A
NUTR50-A
PWTR series
PWTR4090-2RS
PWTR15-2RS
NNTR series
NNTR80*200*90-2ZL
NNTR50*130*65-2ZL
STO series
STO25
STO30
Q: What's the MOQ?
A: No MOQ limited, 1 piece is also welcome.
Q: Are you a trading company or manufacturer?
A: We are a trading company. Direct sources from authorized distributor of various famous bearing brands.
Q: Are your brands bearings original?
A: Yes, all brand bearings are supplied from authorized sources.
Q: What are your company's main products?
A: Our main products cover nearly all kinds of bearings, we offer one-station solution for bearings.
Please let us know model number & quantity & brand of the bearing you need,
Quotation will be sent to you asap.
