Hollow glass production line

Hollow glass production line

    Unit Price: 120000 USD
    Min. Order: 1 Set/Sets
    Packaging: 40 HQ container
    Productivity: 700 - 800 pieces
    Transportation: Ocean,Land,Air
    Place of Origin: JINAN CHINA
    Supply Ability: 500 SETS
    Certificate: CE
    HS Code: 8464901900
    Port: Qingdao Port

Product Description

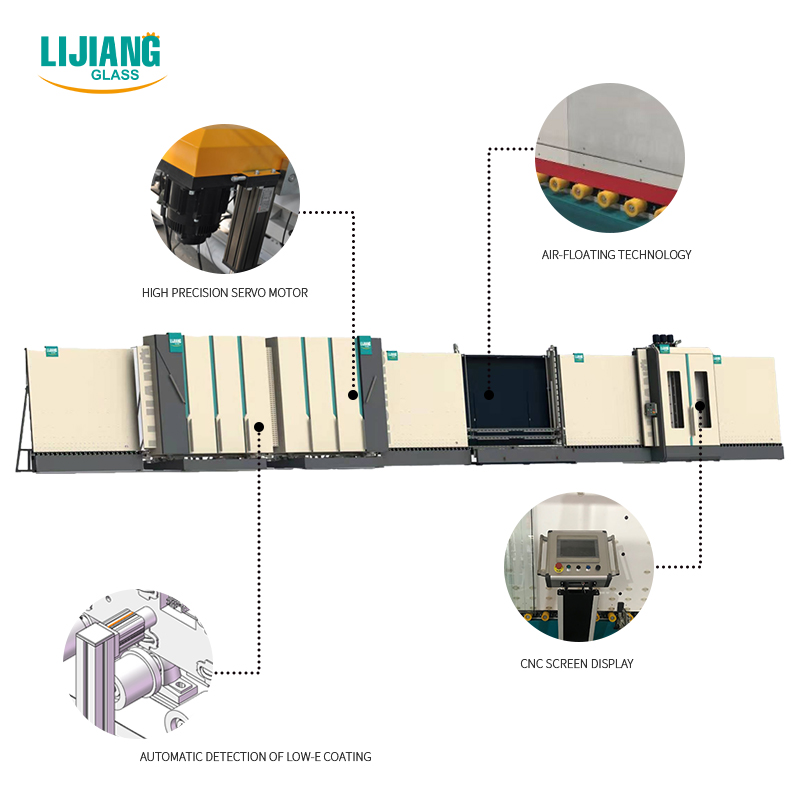

Hollow glass inflatable double station double plate press production line

Feature of Vertical Insulating Glass Production Line

1. Adopt unique inflatable structure to ensure fast inflatable, high inflatable content and save air source

2. It can connect with factory ERP and MES to upgrade from separate functional equipment to automation and then to intelligence.

3. There are two plate pressure, can be used alone or simultaneously. Do small glass is two glass processing at the same time, improve the efficiency of the whole line.

Product Details of IGU Line

Cleaning section

The body of the cleaning machine is made of 304 stainless steel plate with high thickness, which is strong and durable.
With automatic glass thickness measuring device, no need to set the thickness of glass separately and automatic cleaning, so as to scientifically avoid the tedious manual adjustment when more than 8 mm, the thickest can be cleaned to 30mm.
Brush bearing and bearing seat is an important part of cleaning machine, high speed, easy to damage. Our company adopts thrust Self-Aligning Ball Bearings, which are more durable and stable than other rubber and plastic materials.

Air drying room

Wind knife can automatically adjust the opening and distance according to different glass thickness.
Adjusting structure adopts mechanical structure, high stability.
Can be different thickness of glass continuous cleaning, without manual adjustment of the wind knife. To do laminated insulating glass has a better effect

Frame section
Adopt advanced screw adjusting structure design, high positioning accuracy of aluminum frame.
Aluminum alloy guide rail light and smooth, can be adjusted automatically according to the height of the glass.
Hollow-out design is adopted as a whole, and maintenance back door is added to facilitate cleaning of stains on the back of glass.

Pressing mode: servo motor synchronous belt
Servo motor synchronous belt mode is used to ensure ultra-high precision pressing glass, pressing speed. Can make super large, super thick glass.

Technical parameters:

Charging time: 3-5 seconds (1000㎜×1000㎜)

Thickness of insulating glass: 12-60mm 80mm (customized)

Double plate press can be machined maximum size :(customized)

Aerated insulating glass (height 3300mm* length 7000mm)

Movable synchronous belt inflatable - the inflatable way of li Jiang Glass

Filling gas from the bottom of the synchronous belt,
the air hole is always between the first glass and the aluminum frame, so that keep high gas concentration, uniform, fast speed, saving air source.

Other Insulating Glass Equipment of our company:

1.Insulating Glass Production Line
2.Spacer Bending Machine
3.Desiccant Filling Machine
4.Butyl Extruder Machine
5.Insulating Glass Sealing Robot
6.Glass Washing Machine
